par

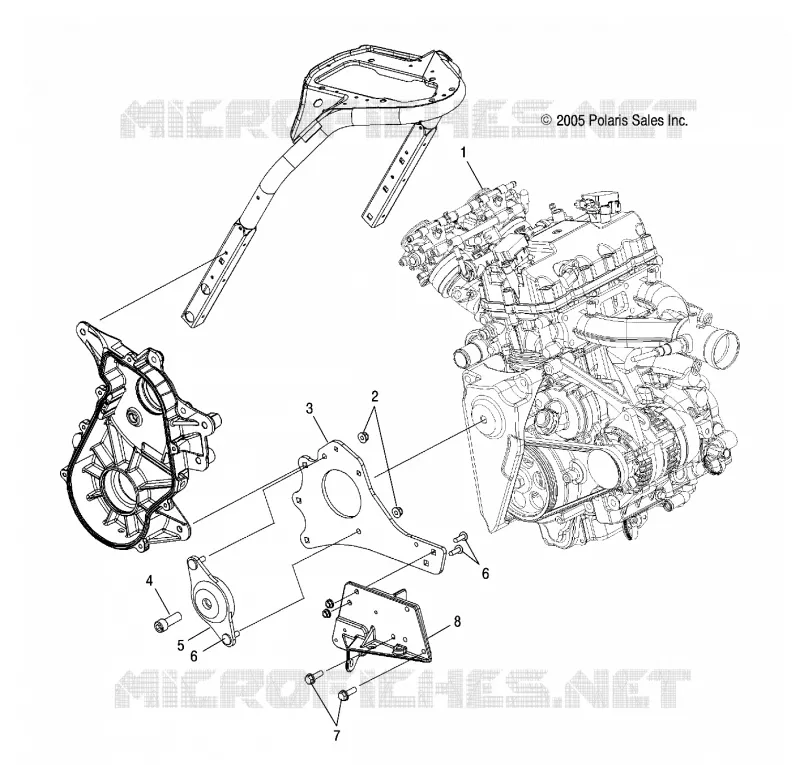

SUPPORT MOTEUR RH and FRONT
1
1
2
3
4
5
6
6
7
8
1
Short Block [FST] NOTE: The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston and crankshaft assembly. Prior authorization is required for warrant
0452920
Non disponible
1
Short Block [FS] NOTE: The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston and crankshaft assembly. Prior authorization is required for warrant
0452921
Non disponible
2
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
8,23€ Prix unitaire TTC
3
Plate Engine Strap RH
5247597
Non disponible
4
Screw
7518374
Non disponible
5
Mount Engine
3021623
Non disponible
6
BOLT CARRIAGE
7512331
7,98€ Prix unitaire TTC
7
SCREW
7518179
7,98€ Prix unitaire TTC
8
Support Shock Tower RH
5134105
Non disponible
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.

Liste des machines utilisant ce schéma
