CARTER DE CHAINEE ASSEMBLY STORM 0950782, STORM SKS 0950582, EURO STORM E950782, E (4929012901B008) POUR EURO STORM - E950782 DE 1995

Livraison offerte en point relais et en France métropolitaine pour toute commande supérieure à 150€. Voir conditions.

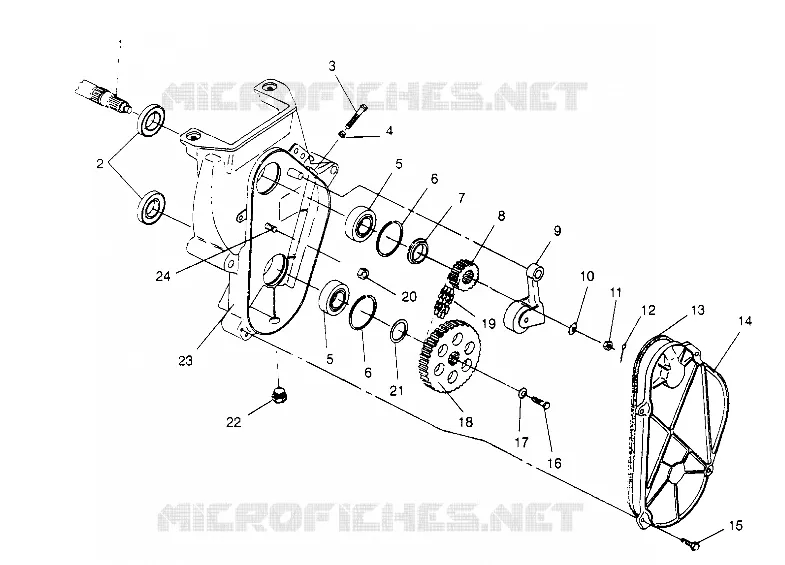

CARTER DE CHAINEE ASSEMBLY STORM 0950782, STORM SKS 0950582, EURO STORM E950782, E (4929012901B008)

1

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Non disponible

2

SEAL OIL

3610030

Non disponible

3

SCR-HH-3/8-16X2.75GR5 ZY3

7515511

7,98€ Prix unitaire TTC

4

NUT-3/8-16-Y

7542404

3,18€ Prix unitaire TTC

5

BEARING W/O SEAL

3514304

23,86€ Prix unitaire TTC

6

RING RETAINING

7718406

10,98€ Prix unitaire TTC

7

SPACER SPROCKET

5010270

Non disponible

8

SPKT 20T (13W) (SKS)

3221055

Non disponible

8

SPKT 23T (13W) (13W)

3221057

Non disponible

9

BLOCK TIGHTENER [No Longer Available]

5630122

Non disponible

9

TIGHTENER ASM GEARCASE Substituted by 1332213

1332096

Non disponible

9

WHEEL C/C IDLER

5630123

Non disponible

9

BEARING

3553002

Non disponible

9

WASHER THRUST(10)

7558702

3,18€ Prix unitaire TTC

9

PIN CHAIN TIGHTENER

7662210

Non disponible

10

WASHER SPRING

7571620

12,36€ Prix unitaire TTC

11

NUT SLOTTED

7542810

6,38€ Prix unitaire TTC

12

PIN COTTER

7661401

1,81€ Prix unitaire TTC

13

GASKET-CHAINCASE

5410277

Non disponible

14

COVER CHAINCASE Substituted by 5630968

5630413

Non disponible

15

SCR-1/4-20X1 1/4-TRIRD HX WH-Y

7512242

4,79€ Prix unitaire TTC

16

SCREW(10)

7515350

7,98€ Prix unitaire TTC

17

WASHER-SPRING CON 5/16X.090 Z

7571618

Non disponible

18

SPROCKET 35T (13W) (13W) (RXL)

3222053

Non disponible

18

SPKT 37T 13W (13W)

3222056

Non disponible

19

CHAIN 66P (13W) SILENT (13 Wide)

3224051

Non disponible

19

CHAIN 64P (13W) SILENT (RXL)

3224052

Non disponible

20

NUT-HEX-3/8-16 A ZTB NYL

7542451

2,39€ Prix unitaire TTC

21

WSHR-1.00X1.250X.120-Y

7555864

Non disponible

22

PLUG

7052115

9,61€ Prix unitaire TTC

23

CHAINCASE TOP MT VENTED MACH Substituted by 5131121

5131055

Non disponible

24

BOLT(10)

7515477

Non disponible

Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
