SUSPENSION, CONTROL ARMS AND SPINDLE POUR 800 RMK ASSAULT 155 / SC SELECT DE 2019

Livraison offerte en point relais et en France métropolitaine pour toute commande supérieure à 150€. Voir conditions.

ENGINE, ECHAPPEMENT VALVE ASM.

STEERING, GUIDON MOUNTING

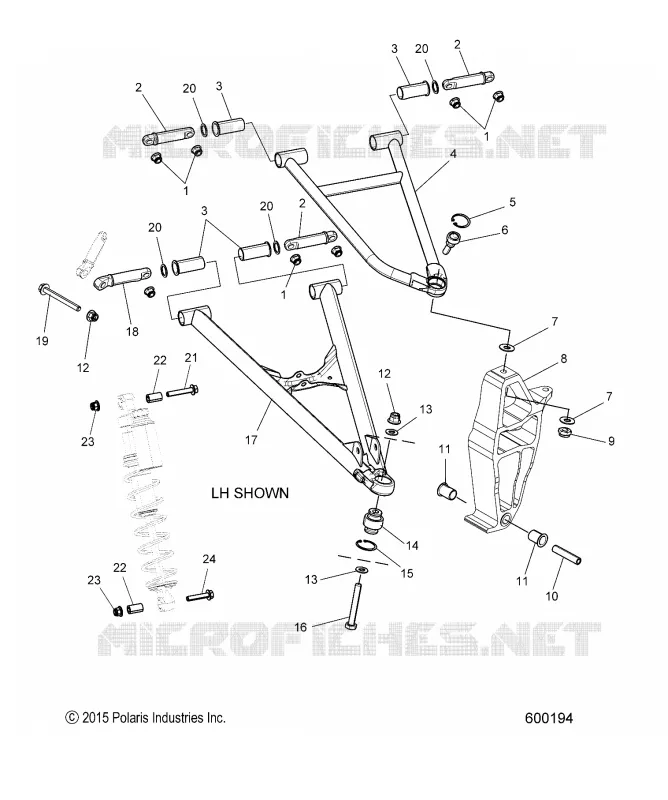

SUSPENSION, CONTROL ARMS AND SPINDLE

1

NUT- M8X1.25 FLG NYLOC-OLIVE D

7547332

7,98€ Prix unitaire TTC

2

SHAFT PIVOT

5139521

Non disponible

3

BUSHING PIVOT

5450297

Non disponible

4

CONTROL ARM LH UPPER MOLY BLACK [CONTROL ARM ONLY]

1824171067

Non disponible

4

CONTROL ARM RH UPPER MOLY BLACK [CONTROL ARM ONLY]

1824172067

Non disponible

5

RING RETAINING

7710642

Non disponible

6

BEARING SPHERICAL UPPER CONTROL ARM

7061219

Non disponible

7

WASHER

7556545

6,38€ Prix unitaire TTC

8

ASM. SPINDLE RMK ASLT RH WHITE [SNOW CHECK OPT][INCL. 11]

1824241133

Non disponible

8

ASM. SPINDLE RMK ASLT RH RED [SNOW CHECK OPT][INCL. 11]

1824241293

Non disponible

8

ASM. SPINDLE RMK ASLT LH [SNOW CHECK OPT][INCL. 11]

1824240

Non disponible

8

ASM. SPINDLE LH RMK ASLT BLACK [SNOW CHECK OPT][INCL. 11]

1824240067

Non disponible

8

ASM. SPINDLE LH RMK ASLT ORANGE BURST [SNOW CHECK OPT][INCL. 11]

1824240647

Non disponible

8

ASM. SPINDLE RMK ASLT LH RED [SNOW CHECK OPT][INCL. 11]

1824240293

Non disponible

8

ASM. SPINDLE RMK ASLT LH WHITE [SNOW CHECK OPT][INCL. 11]

1824240133

Non disponible

8

ASM. SPINDLE RH RMK ASLT BLACK [SNOW CHECK OPT][INCL. 11]

1824241067

Non disponible

8

ASM. SPINDLE RMK ASLT RH [SNOW CHECK OPT][INCL. 11]

1824241

Non disponible

8

ASM. SPINDLE RH RMK ASLT IND SKY BLUE [SNOW CHECK OPT][INCL. 11]

1824241737

Non disponible

8

ASM. SPINDLE LH RMK ASLT IND SKY BLUE [SNOW CHECK OPT][INCL. 11]

1824240737

Non disponible

8

ASM. SPINDLE RH RMK ASLT LIME SQUEEZE [SNOW CHECK OPT][INCL. 11]

1824241630

Non disponible

8

ASM. SPINDLE RH RMK ASLT ORANGE BURST [SNOW CHECK OPT][INCL. 11]

1824241647

Non disponible

8

ASM. SPINDLE LH RMK ASLT LIME SQUEEZE [SNOW CHECK OPT][INCL. 11]

1824240630

Non disponible

9

NUT-M10X1.25 FLG NYLOC-OLIVE D

7547333

3,18€ Prix unitaire TTC

10

BUSHING

5136910

13,73€ Prix unitaire TTC

11

BUSHING SKI PIVOT

5438460

23,86€ Prix unitaire TTC

12

NUT-M10X1.5 HFN NYLOC ZOD

7547423

7,98€ Prix unitaire TTC

13

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

10,98€ Prix unitaire TTC

14

KIT SPHERICAL BEARING LOWER

2204229

47,71€ Prix unitaire TTC

16

SCREW M10x75 HXFL

7519286

12,36€ Prix unitaire TTC

17

CONTROL ARM LOWER LH BLACK [CONTROL ARM ONLY]

1824169067

Non disponible

17

CONTROL ARM LOWER RH BLACK [CONTROL ARM ONLY]

1824170067

Non disponible

18

SHAFT PIVOT LOWER CONTROL ARM FRONT

5139607

Non disponible

19

SCR-M10X1.5X95 HX FLG 10.9 ZOD

7518917

Non disponible

20

WASHER

7556758

Non disponible

21

SCREW

7518941

7,98€ Prix unitaire TTC

22

BUSHING

5137360

Non disponible

23

SPACER-10.2IDX12.62OD

5136530

Non disponible
