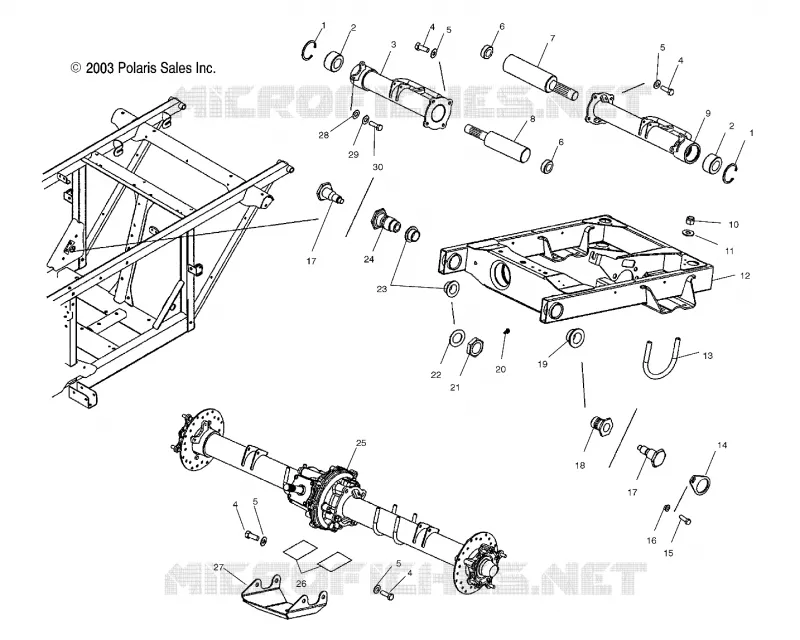

BRAS OSCILLANT
1
1
2
2
3
4
4
4
4
5
5
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
RING-RETAINING 2.875 INTERNAL
7710440
15,50€ Prix unitaire TTC
2
Bearing Ball
3585502
59,65€ Prix unitaire TTC
3
Tube Axle RH
1013293067
Non disponible
4
Bolt
7517585
Non disponible
5
WASHER SPLIT LOCK
7553201
7,98€ Prix unitaire TTC
6
O-Ring
5410772
Non disponible
7
Asm. Axle Driveshaft LH
1380213
Non disponible
8
Asm. Axle Driveshaft RH
1380214
Non disponible
9
Tube Axle LH
1013292067
Non disponible
10
NUT NYLOCK(10)
7542525
8,23€ Prix unitaire TTC
11
WASHER FLAT
7555984
4,79€ Prix unitaire TTC
12
Arm Swing
1013295067
Non disponible
13
U-Bolt
5245127
Non disponible
14
Bracket Bolt Lock
5246229
109,52€ Prix unitaire TTC
15
SCREW
7512490
7,98€ Prix unitaire TTC
16
NUT-FLANGED 3/8-16 NYLON
7547180
4,79€ Prix unitaire TTC
17
Bolt Swing Arm Pivot
5131697
53,68€ Prix unitaire TTC
18
Bushing Swing Arm Pivot LH
5133166
Non disponible
19
Bushing Swing Arm LH
5434545
13,12€ Prix unitaire TTC
20
FITTING-LUBRICATION 1/4-28
7080424
8,23€ Prix unitaire TTC
21
Nut Hex Jam
7547082
Non disponible
22
Washer Flat
7556035
Non disponible
23
Bushing Swing Arm RH
5434546
13,12€ Prix unitaire TTC
24
Bushing Swing Arm Pivot RH
5133167
Non disponible
25
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Non disponible
26
Pad Rubber
5811716
Non disponible
27
Plate Differential Skid
5245665067
Non disponible
28
WASHER-.344X.688X.063 FL-Y
7558402
1,81€ Prix unitaire TTC
29
WASHER-5/16 SPRING LK-MED-Y
7552901
2,39€ Prix unitaire TTC
30
Screw [Rear Caliper Attach]
7517445
Non disponible
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
