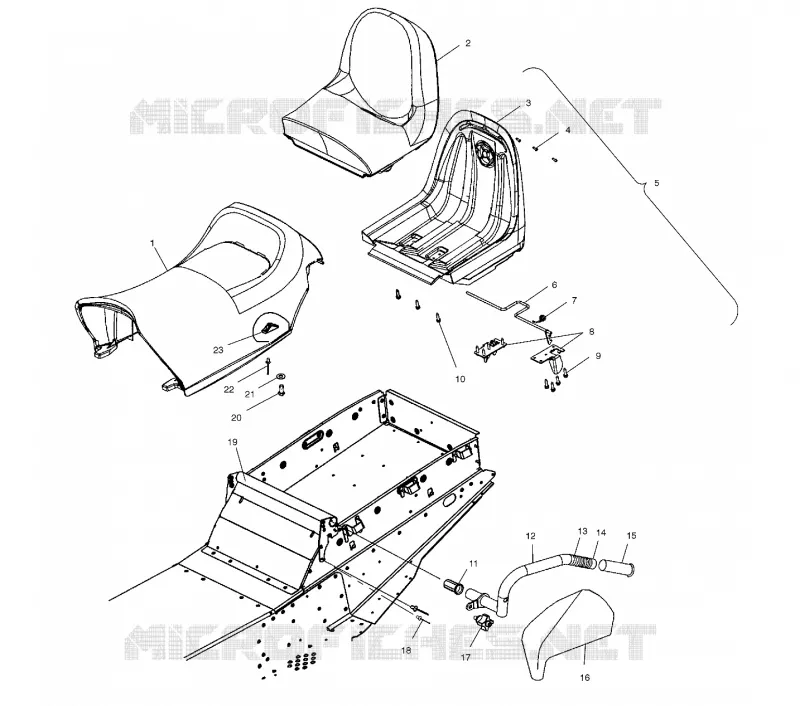

SIEGE
1
1
2
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
1
Asm. Seat Cover
2683069
Non disponible
1
Asm. Seat Touring
2683046
Non disponible
2
Asm. Seat Cover
2683072
Non disponible
2
Asm. Seat Base Secondary
2683085
Non disponible
3
Asm. Passenger Seat [Incl. 2-10]
2683070
Non disponible
4
SCREW-#10X3/4-HI/LO-PN-T25 TRX-M
7512026
2,39€ Prix unitaire TTC
5
Asm. Seat Base [Incl. 3-10]
2683071
Non disponible
6
Latch Seat
1013935
Non disponible
7
Spring
7042246
Non disponible
8
Plate Latch RH
5247091
Non disponible
8
Plate Latch LH
5247090
Non disponible
9
RVT-3/16(.020-.200)AL-BULBX-B
7621485
2,39€ Prix unitaire TTC
10
SCR-#14X1.0 LG HI/LO/TAPER-M
7512098
3,18€ Prix unitaire TTC
11
Bushing
5434660
Non disponible
12
Handle Grab LH
1013963067
Non disponible
13
HEATER GRIP LO/MED/HI
2460677
Non disponible
14
PLUG-OVERFLOW 8X (RED)
5431096
3,98€ Prix unitaire TTC
15
Grip Handlebar
5412306
Non disponible
16
Asm. Deflector Wind LH
2683161
Non disponible
16
Asm. Deflector Wind RH
2683162
Non disponible
17
Knob Grab Handle
2632756
Non disponible
18
RIVET-3/16-.090-.290
7661637
2,39€ Prix unitaire TTC
19
Tube Grab Handle
1013936
Non disponible
20
SCR-1/4-20X1-1/8 HXWHTAP/R-G5Y
7517219
8,23€ Prix unitaire TTC
21
WASHER [INTL]
7558301
2,39€ Prix unitaire TTC
22
RIVET POP 5/32#(50) Substituted by 7621307
7621319
Non disponible
23
NUT-SEAT
5631194
Non disponible
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
