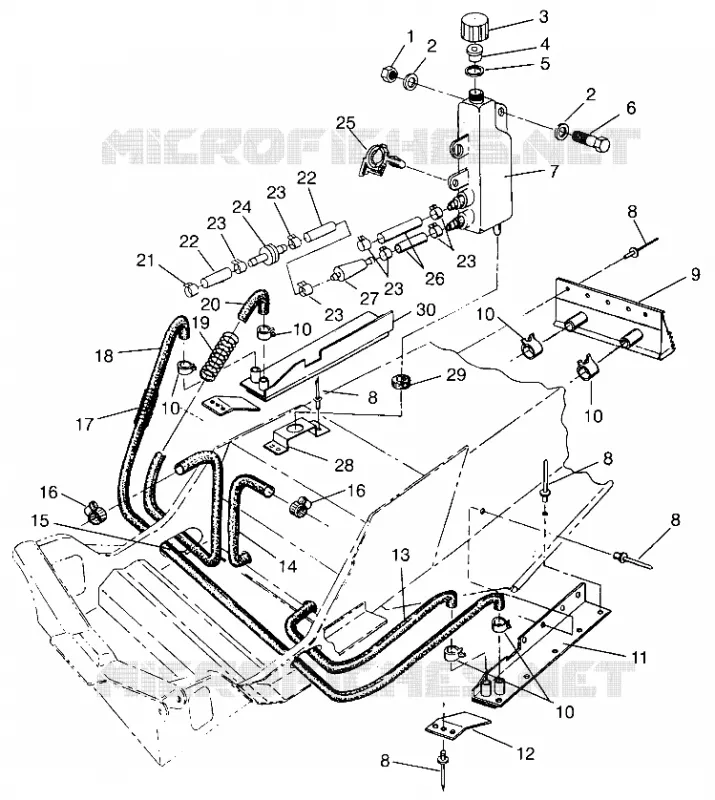

SYSTÈME DE REFROIDISSEMENT WIDETRAK LX 0962064 and EUROPEAN WIDETRAK LX E962064 (4931643164C006)

1

NUT NYLOK

7542122

2,39€ Prix unitaire TTC

2

WASHER-.312 X .734 X .065-Z

7558302

3,18€ Prix unitaire TTC

3

CAP-OVER FLOW BOTTLE DRILLED

5430743

12,07€ Prix unitaire TTC

4

PLUG-OVERFLOW 8X (RED)

5431096

3,98€ Prix unitaire TTC

5

GASKET-OVERFLOW CAP

5810279

4,79€ Prix unitaire TTC

6

BOLT(10)

7512240

Non disponible

7

BOTTLE O#FLOW W/FITTING

5431733

Non disponible

8

RIVET-3/16-.090-.290

7661637

2,39€ Prix unitaire TTC

9

EXT CTR.COOLING

2511187

Non disponible

10

CLAMP HOSE SIL 27MM.(10) Substituted by 7080841 (Silver)

7080562

12,36€ Prix unitaire TTC

11

COOLER LH SIDE(XTRA 10) Substituted by 1240059

2511257

Non disponible

12

GUARD COOL.EXT.

5240555

Non disponible

13

HOSE CROSSOVER SHORT

5410558

Non disponible

14

HOSE

5410398

Non disponible

15

TRIM EDGE

5521131

Non disponible

16

CLAMP HOSE BLK 29MM.(10) Substituted by 7080842 (Black)

7080563

12,36€ Prix unitaire TTC

17

TUBING CONVOL 1#X2.5#

5521242

Non disponible

18

HOSE CROSSOVER

5410557

Non disponible

19

SPRING HOSE RETAINER

7041079

Non disponible

20

HOSE PUMP INLET

5410559

Non disponible

21

CLAMP-HOSE(10)

7080134

Non disponible

22

TAPE FOIL 1.50 X 7.50

5810831

Non disponible

23

CLAMP-HOSE (LARGE GREEN)

7080307

1,81€ Prix unitaire TTC

24

VALVE CHECK

7052038

19,08€ Prix unitaire TTC

25

CLIP ROSEBUD

4020139

8,23€ Prix unitaire TTC

26

FUEL LINE-50FT.PKG. Substituted by 8450003-1525

2870563

127,91€ Prix unitaire TTC

27

FILTER WATER LINE Substituted by 2530024

2530010

Non disponible

28

BRACKET

5223985

Non disponible

29

GROMMET RUBBER

5410021

Non disponible

30

COOLER RH SIDE(XTRA 10)

2511258

Non disponible

Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
