par

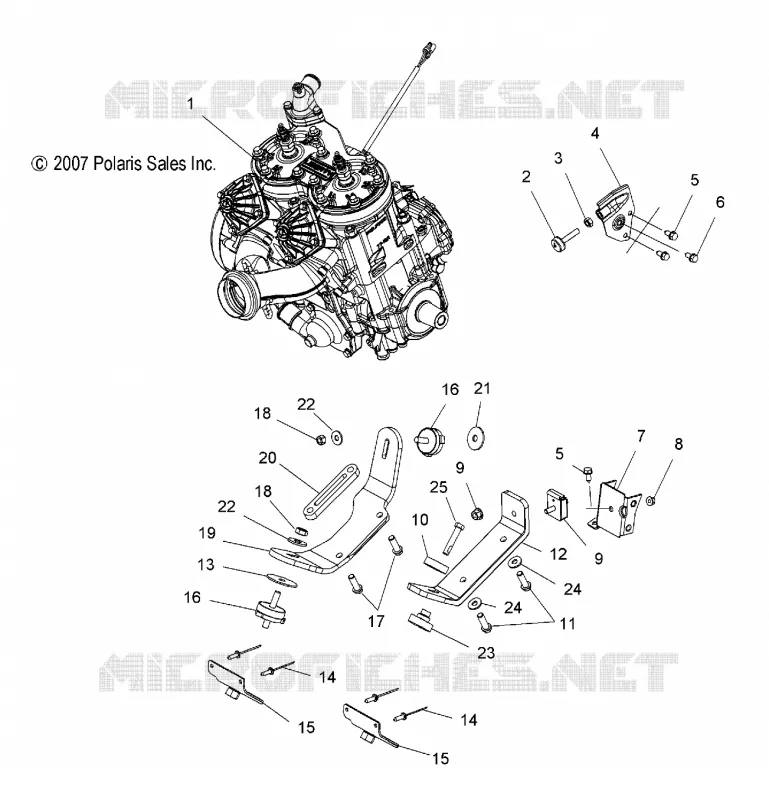

MOTEUR, MOUNTING
7
8
9
9
10
11
12
13
14
14
15
15
16
16
17
18
18
19
20
21
22
22
23
24
24
25
1
Kit Short Block NOTE: The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston and crankshaft assembly. Prior authorization is required for warrant
2203609
Non disponible
2
STOP-TORQUE COURSE 3/8-16 1.50
3021354
39,76€ Prix unitaire TTC
3
NUT-3/8-16-Y
7542404
3,18€ Prix unitaire TTC
4
Torque Stop
1015749
Non disponible
5
SCREW
7517854
9,61€ Prix unitaire TTC
6
SCR-3/8-16X3/4 HX FLNG-GR5-Y
7517632
9,61€ Prix unitaire TTC
7
Bracket Engine Mount
1015228
Non disponible
8
NUT-FLANGED 3/8-16 NYLON
7547180
4,79€ Prix unitaire TTC
9
MOUNT-ENGINE 3/8-16 RECT
3021206
Non disponible
10
Mount Engine Rubber Top
5413350
Non disponible
11
BOLT
7512539
7,98€ Prix unitaire TTC
12
Strap Engine LH
5135992
Non disponible
13
WASHER
7555915
6,38€ Prix unitaire TTC
14
RIVET-3/16-.090-.290
7661637
2,39€ Prix unitaire TTC
15
Asm. Plate Clinch Nut
1016001
Non disponible
16
ISOLATOR RUBBER
3021717
Non disponible
17
Screw
7518521
Non disponible
18
NUT-HEX-3/8-16 A ZTB NYL
7542451
2,39€ Prix unitaire TTC
19
Strap Engine RH
5135518
Non disponible
20
Spacer
5135153
Non disponible
21
Washer
7555936
7,98€ Prix unitaire TTC
22
WASHER FLAT
7555893
1,81€ Prix unitaire TTC
23
Mount Engine Rubber Bottom
5413303
Non disponible
24
WASHER LOCK(10)
7553101
7,98€ Prix unitaire TTC
25
Screw
7518782
Non disponible
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
