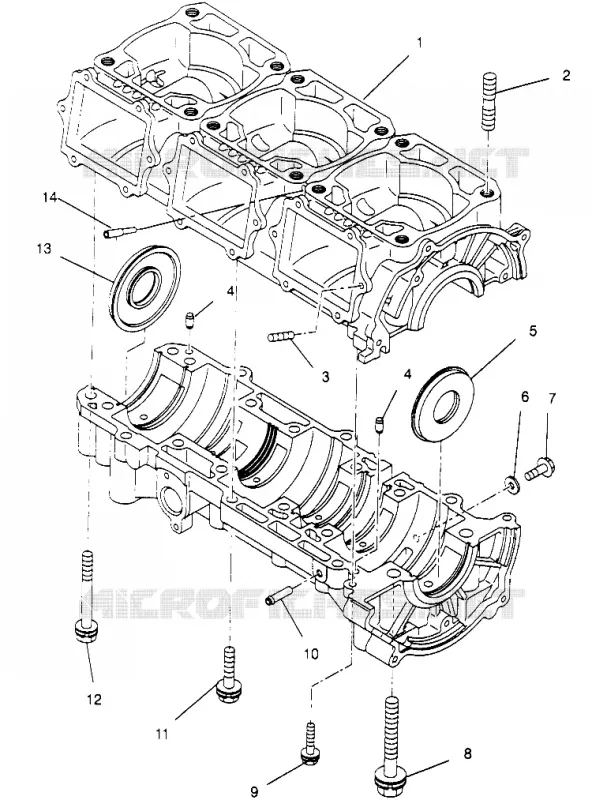

CARTERS MOTEUR 600 XCR SP 0965677 and EUROPEAN 600 XCR SP E965677 (4932063206C011)
1
CRANKCASE (Incl. 1-3 7-12)
3085239
Non disponible
2
STUD
3084519
Non disponible
3
STUD Substituted by 3086772
3084520
2,75€ Prix unitaire TTC
4
PIN DOWEL Substituted by 3086838
3080103
7,02€ Prix unitaire TTC
5
SEAL OIL
3085105
Non disponible
6
GASKET ALUM (10) Substituted by 7555998
3082758
2,39€ Prix unitaire TTC
7
BOLT FLANGE(10) Substituted by 3087035
3083568
7,98€ Prix unitaire TTC
8
BOLT&WASHER ASM.
3085240
Non disponible
9
ASM. BOLT AND WASHER
3082038
Non disponible
10
PIPE PULSE
3083798
14,30€ Prix unitaire TTC
11
ASM. BOLT AND WASHER
3084225
Non disponible
12
ASM. BOLT AND WASHER
3084670
Non disponible
13
SEAL OIL
3085241
35,78€ Prix unitaire TTC
14
PIPE BREATHER (Breather)
3084128
Non disponible
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
