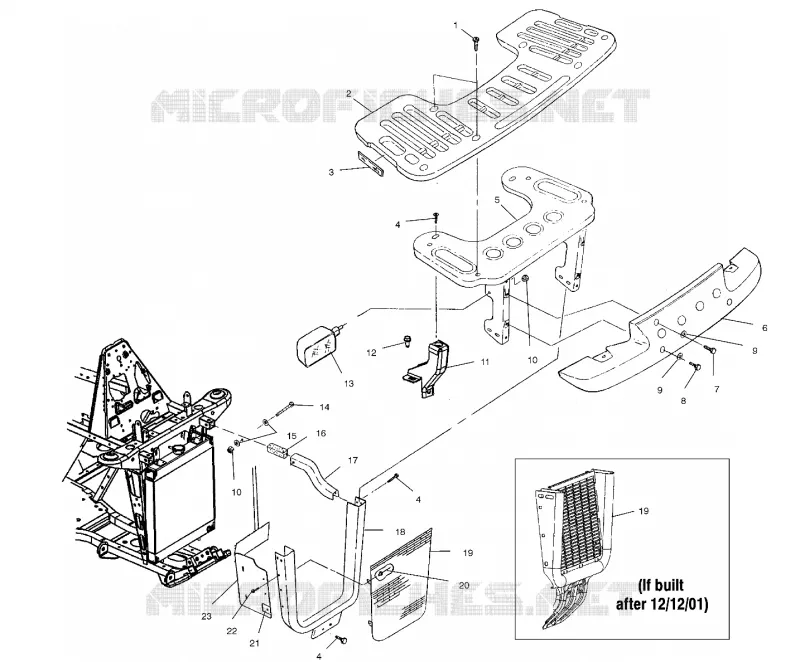

FIXATION PORTE BAGAGES ET PARE CHOCS AVANT
1
2
3
4
4
4
5
6
7
8
9
9
10
10
11
11
12
13
13
13
14
15
16
17
17
18
19
19
19
19
20
21
22
23
23
1
2
3
4
5
6
6
7
8
9
10
11
12
13
13
14
14
15
16
17
18
19
20
21
1
2
3
4
5
6
7
8
9
10
10
10
1
SCR-1/4-20X1.00 TR/TX-M
7517685
3,18€ Prix unitaire TTC
2
RACK FRONT BLK (Incl. Ref. 3 and Decal)
2670180070
Non disponible
3
Decal Reflector Amber
7079924
16,10€ Prix unitaire TTC
4
SCR-5/16-18X3/4 TFM HW T/R-Y
7515399
2,39€ Prix unitaire TTC
5
Kit Front Rack Mount
2200775
85,03€ Prix unitaire TTC
6
Bumper
5432155070
187,76€ Prix unitaire TTC
7
SCREW
7515391
8,23€ Prix unitaire TTC
8
Screw
7515390
Non disponible
9
WASHER
7555954
8,23€ Prix unitaire TTC
10
NUT-5/16-18 NYLOK-Y [INTL]
7542324
1,81€ Prix unitaire TTC
11
Support Front Rack LH
1013744067
Non disponible
11
Support Front Rack RH
1013746067
Non disponible
12
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
2,39€ Prix unitaire TTC
13
H/L ASM RH 30/30W
2431012
Non disponible
13
BULB H/L 30/30 W.
4030061
Non disponible
13
H/L ASM LH 30/30W
2431011
Non disponible
14
SCR-HH-5/16-18X1.75 GR5 ZY3
7512329
7,98€ Prix unitaire TTC
15
WASHER-.344X.688X.063 FL-Y
7558402
1,81€ Prix unitaire TTC
16
Plug Frame
5810467
Non disponible
17
Extension Frame RH
5244730067
Non disponible
17
Extension Frame LH
5244729067
Non disponible
18
GUARD-BRUSH BLK (FB)
5244731067
91,13€ Prix unitaire TTC
19
Guard Brush
1013772067
Non disponible
19
GRILL BRUSHGUARD BLK.
5240591067
Non disponible
20
RIVET
7621330
2,39€ Prix unitaire TTC
21
NUT U-TYPE
7670094
9,61€ Prix unitaire TTC
22
Screw
7512097
Non disponible
23
Shield Side Radiator RH
5433924
Non disponible
23
Shield Side Radiator LH
5433923
Non disponible
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.
