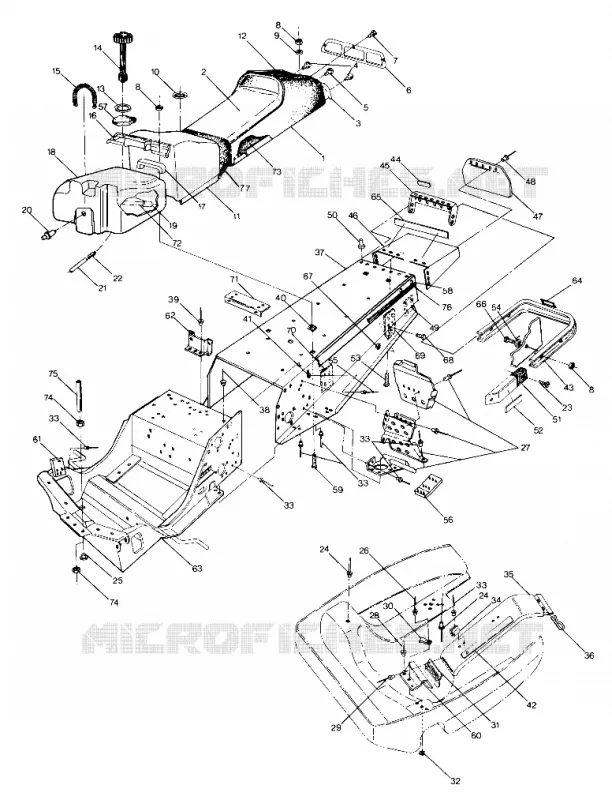

CHASSIS AND SIEGE 500 AND 500 CLASSIC UPDATED 2/90 (4916791679001A)

-

DESC NOT_AVAILABLE (500 SKS)

2681459

Non disponible

1

SEAT ASM (CLASSIC) Substituted by 2200747

2681424

Non disponible

1

SEAT ASM (INDY500) Substituted by 2200747 (Incl. 2-7 12 75) (500 Only)

2681385

Non disponible

2

COVER SEAT(INDY500) Substituted by 2200738 (500 Only)

2681386

Non disponible

2

COVER SEAT [No Longer Available] (500 SKS)

2681460

Non disponible

2

COVER SEAT(CLASSIC) Substituted by 2200738 (500 Classic Only)

2681423

Non disponible

3

HOUSING TAILLIGHT

5430425

Non disponible

4

BULB TAILLIGHT(10)

4030015

9,36€ Prix unitaire TTC

5

BULB BRAKELIGHT

4030019

Non disponible

6

LENS TAILLIGHT

5430423

Non disponible

7

SCREW(10)

7511840

Non disponible

8

NUT NYLOK

7542122

2,39€ Prix unitaire TTC

9

WASHER-.270X1.25X.060 FL-Y

7558221

4,79€ Prix unitaire TTC

10

GROMMET-GAS TANK

5430575

Non disponible

11

COVER TANK (500) (500 Only)

2681426

Non disponible

11

COVER TANK(CLASSIC) Substituted by 2200738 (500 Classic Only)

2681425

Non disponible

12

BUCKLE&STRAP (Sport 400 600)

2681290

Non disponible

13

GASKET-GAS CAP Substituted by 5810513

5810142

5810513

13,12€ Prix unitaire TTC

14

GAUGE GAS Substituted by 2511246

2511149

Non disponible

15

SPRING TANK FRONT

7042020

Non disponible

16

STRAP GAS TANK Substituted by 5222330-067

5221722

Non disponible

17

CUSHION TANK H.D.

5420126

Non disponible

18

TANK GAS (Incl. 19-22)

2511150

Non disponible

19

FUELPICKUP W/STRAINER

7052037

7052301

23,84€ Prix unitaire TTC

20

FITTING OUTLET DOUBLE

7052023

29,82€ Prix unitaire TTC

21

KIT-TANK VENT

2200190

Non disponible

22

VENT FITTING TANK Substituted by 5430579

5430669

3,50€ Prix unitaire TTC

23

SCREW(10)

7511863

Non disponible

24

RIVET-POP3/16(.251-.375)AL-LFB

7621457

2,39€ Prix unitaire TTC

25

PLUG

7080288

Non disponible

26

RIVET-POP 3/16(.251-.375)-ST-Z

7621402

2,39€ Prix unitaire TTC

27

FOOTREST LH (650) (650 Only)

2200303

Non disponible

27

FOOTREST RH (650) [No Longer Available] (650 Only)

2200304

Non disponible

27

KIT RH.FOOTREST(SCAND) [No Longer Available]

2200332

Non disponible

27

FOOTREST ASM LH

2200250

Non disponible

27

FOOTREST ASM RH

2200254

Non disponible

28

RIVET(50)

7621452

Non disponible

29

RIVET

7621330

2,39€ Prix unitaire TTC

30

CLIP WIRING (10) Substituted by 7080665

4020035

Non disponible

31

HINGE

5210728

Non disponible

32

WASHER FLAT

7558212

1,81€ Prix unitaire TTC

33

RIVET CH. Q

7621429

2,39€ Prix unitaire TTC

34

CLIP BELT Substituted by 5222769 (400 600)

5220817

5222769

13,12€ Prix unitaire TTC

35

GUARD CLUTCH Substituted by 5240965

5230118

Non disponible

36

PIN RETAINING (10)

7080216

Non disponible

37

TUNNEL (500 SKS) Substituted by 1011806 (500 SKS Only w/1011694)

1011747

Non disponible

37

TUNNEL (400&650) Substituted by 1011804

1011664

Non disponible

37

DESC NOT_AVAILABLE (500 SKS)

1011777

Non disponible

37

TUNNEL (500) Substituted by 1011808

1011746

Non disponible

38

RIVET (MONOBOLT) Substituted by 7661637

7661620

7661637

2,39€ Prix unitaire TTC

40

NUT SPEED

7670021

9,61€ Prix unitaire TTC

41

SNAP-MALE(10)

7080227

Non disponible

42

DECAL ENG/CLUTCH [No Longer Available]

7072871

Non disponible

43

DESC NOT_AVAILABLE

5224421

Non disponible

43

BUMPER REAR Substituted by 5224334-067

5224334

Non disponible

43

BUMPER (SKS) Substituted by 5224349-067 (400 SKS & 650 SKS Only)

5224349

Non disponible

43

BUMPER R.(N-INDY) Substituted by 5224347-067 (Sport Trail)

5224347

Non disponible

44

DECAL TRACK GOLD [No Longer Available] (500 Classic Only)

7072874

Non disponible

44

DECAL TRACK Substituted by 7072872

7072132

Non disponible

45

PANEL TUNNEL BACK Substituted by 5220478-067

5220478

Non disponible

46

PANEL CLOSE-OFF REAR Substituted by 1011694-067 (Trail SKS Only)

1011694

Non disponible

47

FLAP SNOW SILVER Substituted by 5410394-1106 (400)

5410394

Non disponible

47

FLAP SNOW GOLD Substituted by 5410394

5410392

Non disponible

48

POP RIVET(50)

7621418

2,39€ Prix unitaire TTC

49

WEARPLATE TUNNEL (400 & 650)

5222061

Non disponible

50

RIVET Substituted by 7661812 (SPORT)

7661818

0,61€ Prix unitaire TTC

51

CAP BUMPER Substituted by 5430930-070 (TRAIL)

5430930

Non disponible

52

REFLECTOR RED

2670070

21,68€ Prix unitaire TTC

53

BOLT

7512103

6,38€ Prix unitaire TTC

54

WASHER [INTL]

7558301

2,39€ Prix unitaire TTC

55

RIVET(50)

7621222

Non disponible

56

PLATE TUNNEL RH

5220635

Non disponible

56

PLATE TUNNEL LH

5220634

Non disponible

57

FOAM FILLER

5810201

Non disponible

58

DECAL(47.5##)TUNNEL [No Longer Available]

7072078

Non disponible

59

SCR-RHCAR-1/4-20X0.75 GR5 ZY3

7512193

4,79€ Prix unitaire TTC

60

BRACKET HINGE Substituted by 5241437

5220406

Non disponible

61

SUPT. MUFFLER [No Longer Available]

1011582

Non disponible

62

BRACKET Substituted by 5221932-067

5221932

Non disponible

63

DESC NOT_AVAILABLE (500 Classic Only)

1011763

Non disponible

63

DESC NOT_AVAILABLE (500 Special Only)

1011771

Non disponible

63

BULKHEAD (500) Substituted by 1011743-067 (500 Only)

1011743

Non disponible

64

DECAL R.BUMPER [No Longer Available] (500 Classic Only)

7072780

Non disponible

64

DECAL(36.0##)R.BUMP. [No Longer Available] (500 Only)

7072653

Non disponible

65

DECAL SKS BLUE [No Longer Available] (500 SKS Only)

7072819

Non disponible

66

BOLT(10)

7512240

Non disponible

67

NUT-HEX-3/8-16 A ZTB NYL

7542451

2,39€ Prix unitaire TTC

68

BOLT(10)

7515432

Non disponible

69

BRKT R.SUSP LH MTG. Substituted by 1011749-067

1011666

Non disponible

69

BRKT R.SUSP RH MTG. Substituted by 1011750-067

1011667

Non disponible

70

BRKT. Substituted by 5220542-067

5220542

Non disponible

71

BRKT TOOL BOX

5220973

Non disponible

72

LINE-BOOST 3/16 ID 85 CM

8450003

8450003-1525

127,91€ Prix unitaire TTC

74

PALNUT(10) (Twin ES)

7670031

Non disponible

75

SPACER (500 Classic Only)

5332896

Non disponible

76

DECAL TUNNEL STRIPE [No Longer Available] (500 Classic Only)

7072778

Non disponible

76

DECAL TUNNEL STRIPE [No Longer Available]

7072777

Non disponible

77

KNOB ADJ. Substituted by 2670130

7030007

Non disponible

77

STRIP-WEAR (600 600 SE)

5510130

Non disponible

77

DESC NOT_AVAILABLE

5222119

Non disponible

77

BRACKET-CLUTCH GUARD [No Longer Available]

5223798

Non disponible

77

GRABBAR RH Substituted by 1011730-067

1011697

Non disponible

77

PLATE BACKING Substituted by 5211122-067

5211122

Non disponible

77

DESC NOT_AVAILABLE (500 SP)

5430761

Non disponible

77

COVER TANK (SP) Substituted by 2200741 (500 SP)

2681495

Non disponible

77

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Non disponible

77

REFLECTOR

5430781

Non disponible

77

BRACKET HITCH

5220941

Non disponible

77

HARNESS-TAILLIGHT Substituted by 2460399

2460226

Non disponible

77

BOX TOOL (2-UP SEAT) Substituted by 5431345

5430925

Non disponible

77

SEAT ASM (500SP) Substituted by 2200751 (500 SP)

2681493

Non disponible

77

COVER SEAT (2-UP) [No Longer Available] (500 SKS)

2681365

Non disponible

77

GRABBAR LH Substituted by 1011729-067

1011696

Non disponible

77

PLATE HITCH MOUNT Substituted by 5220942-067

5220942

Non disponible

77

COVER SEAT (SP) Substituted by 2200741 (500 SP)

2681494

Non disponible
