par

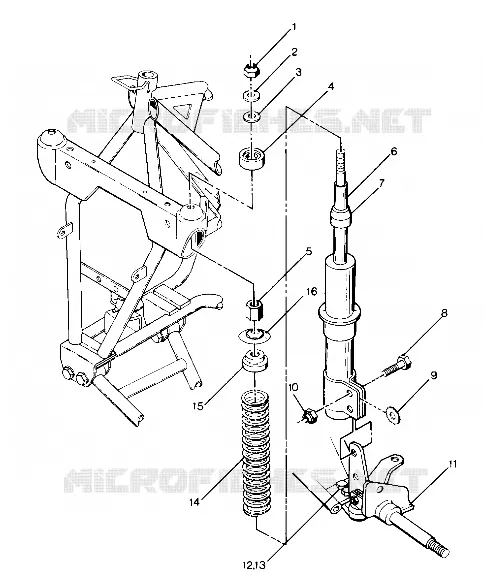

SUPPORT (4913491349008A)
1
2
3
4
5
6
7
8
9
10
11
11
11
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
1
NUT FLEX LOC(10)
7542507
Non disponible
2
WSHR-.500X1.50-12GA-Y
7555749
2,39€ Prix unitaire TTC
3
SPACER-RUBBER
5810291
7,98€ Prix unitaire TTC
4
PIVOT BALL TOP Substituted by 5432872
5430806
13,12€ Prix unitaire TTC
5
SPACER THREADED
5130631
Non disponible
6
TUBE STRUT WELD.
1843010
Non disponible
7
BUMPER RUBBER
5410429
Non disponible
8
BOLT [No Longer Available]
7512516
Non disponible
9
WASHER LOCK(10)
7571612
Non disponible
10
NUT FLANGE
7542522
9,61€ Prix unitaire TTC
11
SPINDLE LH Substituted by 1821023-067
1821023
Non disponible
11
SPINDLE RH Substituted by 1821024-067
1821024
Non disponible
12
BOLT(10) Substituted by 7512492
7515458
2,39€ Prix unitaire TTC
13
NUT
7542449
7,98€ Prix unitaire TTC
14
SPRING STRUT RED Substituted by 7041161-067
7041189
Non disponible
15
RETAINER SPRING TOP (Before 11/2/98)
5220602
Non disponible
16
PIVOT BALL BOTTOM Substituted by 5432871
5430807
14,30€ Prix unitaire TTC
Les schémas ne sont pas contractuels, en cas de doute, nos professionnels sont présents pour répondre à vos questions. Lors de l'ajout d'une pièce au panier, faites attention à commander la quantité souhaitée. Le prix unitaire indiqué est bien le prix pour chaque référence en quantité 1.

Liste des machines utilisant ce schéma
